Manifold - R - 2 Way-03

Dwg No. IIMV/2R/03
Manifold - R - 2 Way-01 Process Diagram

Orifice : 4 mm
Approximate Weight : 1.0 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

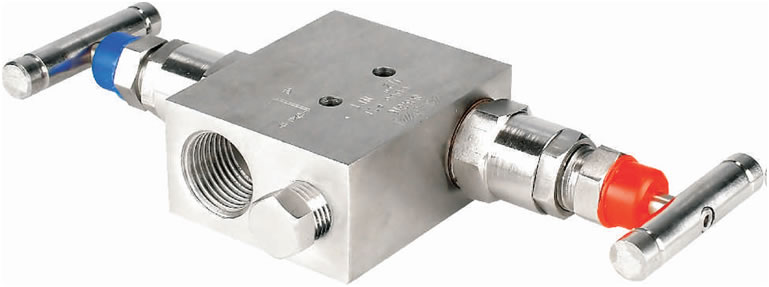

Manifold - R - 2 Way-03

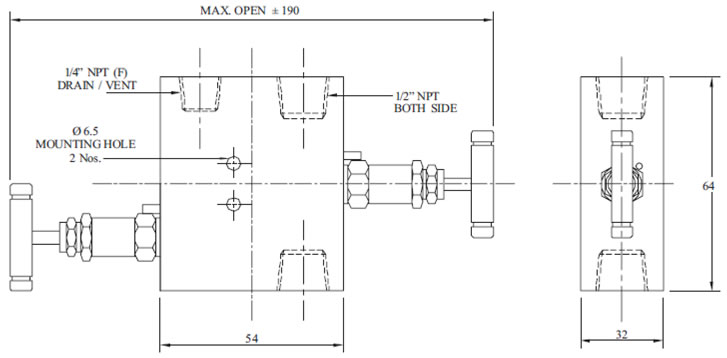

Manifold - R - 2 Way-03 Diagram

Download Catalogue
