Adaptor / Male x Female / 10,000 psi

A High Pressure Adaptor Male x Female is a Threaded Pipe fitting which consists of a short piece of Hex pipe, provided with a female pipe thread at one end and a male pipe thread at another, for connecting two other fittings at very high pressure of 10,000 psi.

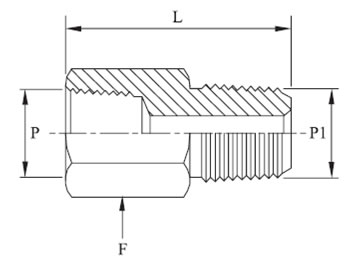

High Pressure Adaptor Male x FemaleHigh Pressure Adaptor Male x Female Diagram

Design : IIPF/10K/A

Part No.

P
NPTF

P1
NPTM

F
Hex

L

IIPF/10K/A/2-2I

1/8"

1/8"

3/4"

1.11"

IIPF/10K/A/4-4I

1/4"

1/4"

7/8"

1.51"

IIPF/10K/A/6-6I

3/8"

3/8"

1-1/8"

1.57"

IIPF/10K/A/8-8I

1/2"

1/2"

1-3/8"

2.07"

IIPF/10K/A/12-12I

3/4"

3/4"

1-3/4"

2.26"

IIPF/10K/A/16-16I

1"

1"

2-1/4"

2.69"
