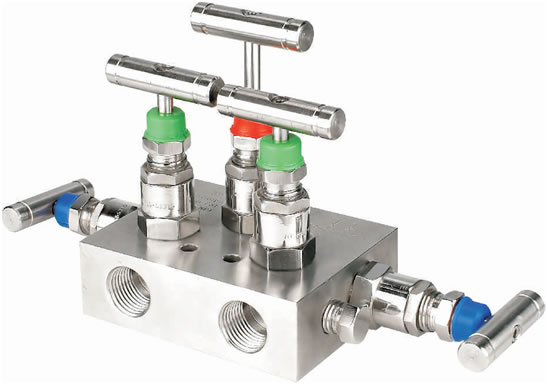

Manifold - R - 5 Way-01

Dwg No. IIMV/5R/01Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 2.2 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

Manifold - R - 5 Way-01
Manifold - R - 5 Way-01 Diagram
