Manifold - R - 5 Way-03 (Direct Mounting)

Dwg No. IIMV/5R/03Manifold - R - 5 Way-01 process diagram



Manifold - R - 5 Way-01 process diagram





Orifice : 4 mm
Approximate Weight : 2.5 kg
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre

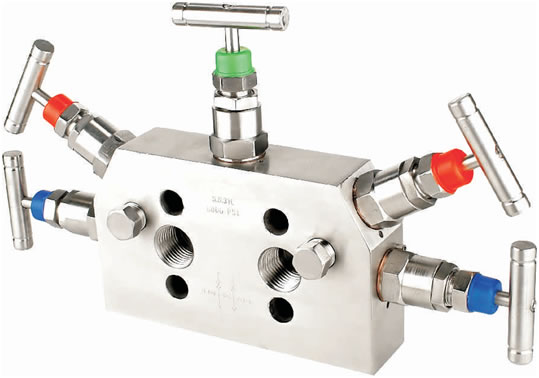

Manifold - R - 5 Way-03 (Direct Mounting)

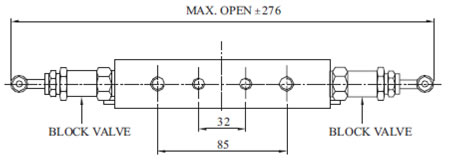

Manifold - R - 5 Way-03 (Direct Mounting) Diagram1

Manifold - R - 5 Way-03 (Direct Mounting) Diagram2
