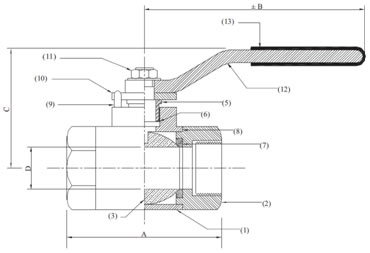

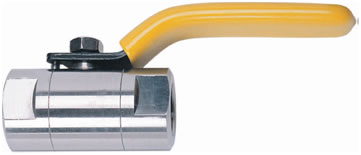

Dwg No. IIBV/2/MP
|
Orifice : 4 mm
Pressure : up to 6000 psi
Temperature : up to 400°C
All dimensions in Millimetre |
|
|
PART NO. |
Size |
A |
B |
C |
D |
IIBV/2/MP/01 |
1/8" |
41 |
40 |
30 |
2.3 |
IIBV/2/MP/02 |
1/4" |
51 |
53 |
40 |
6.4 |
IIBV/2/MP/03 |
3/8" |
52 |
63 |
50 |
9.6 |
IIBV/2/MP/04 |
1/2" |
63 |
102 |
55 |
12.7 |
IIBV/2/MP/05 |
3/4" |
80 |
135 |
72 |
19 |
IIBV/2/MP/06 |
1" |
90 |
142 |
80 |
25.4 |
IIBV/2/MP/07 |
1-1/4" |
95 |
163 |
80 |
32 |
IIBV/2/MP/08 |
1-1/2" |
108 |
195 |
101 |
50 |
IIBV/2/MP/09 |
2" |
129 |
195 |
93 |
38 |
IIBV/2/MP/10 |
2-1/2" |
152 |
250 |
131 |
63 |
IIBV/2/MP/11 |
3" |
171 |
275 |
140 |
76 |
|
STANDARD DIMENSION TABLE |
NO. |
DESCRIPTION |
MATERIAL |
QTY. |
1 |
BODY |
SS316 |
1 |
2 |
CONNECTOR |
SS316 |
1 |
3 |
BALL |
SS316 |
1 |
4 |
STEM |
SS316 |
1 |
5 |
GLAND NUT |
SS |
1 |
6 |
S. WASHER |
PTFE |
1 |
7 |
B. WASHER |
PTFE |
1 |
8 |
P. WASHER |
PTFE |
1 |
9 |
STOPPER PIN |
SS316 |
1 |
10 |
CAM PLATE |
MS |
1 |
11 |
NUT |
SS |
1 |
12 |
HANDLE |
SS |
1 |
13 |
SLEEVE |
PVC |
1 |
|
|
