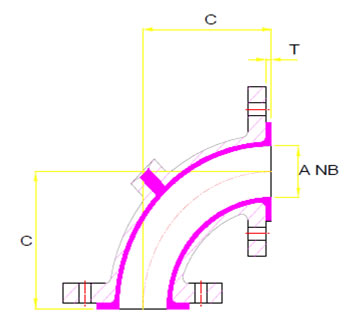

Lined 90° Elbow
90° Elbow 15 – 300
ANSI #150
S.G. Iron - EN-GJS-400-18-LT
Cast Steel - ASTM A 216 WCB
Steel Fabrication (PTFE Lined*)
PTFE: ASTM D 4895 Type III
PFA - ASTM D 3307 type II
PVDF - ASTM D 3222
Polypropylene - ASTM D 4101
A mm |
C mm |
T mm |
~kg |
15 |
65 |
1.5 |
1.9 |
20 |
75 |
1.5 |
2 |
25 |
89 |
5.6 |
2.4 |
40 |
102 |
5.6 |
3.9 |
50 |
114 |
5.6 |
6.4 |
80 |
140 |
5.6 |
12 |
100 |
165 |
6.4 |
19 |
150 |
203 |
7.1 |
34 |
200 |
229 |
7.9 |
57 |
250 |
279 |
7.9 |
91 |
300 |
305 |
9.5 |
110 |
90° Elbow 350 - 600
ANSI # 150.
Two Piece, Long Radius
PTFE: ASTM D 4894 Type IV & D 4895 Type III
Steel - ASTM A 234 gr. WPB, ASTM A 105.
A mm |
C mm |
T mm |
~ kg |
350 |
546 |
10 |
125 |
400 |
610 |
10 |
150 |
450 |
673 |
10 |
190 |
500 |
737 |
10 |
245 |
600 |
864 |
10 |
335 |
