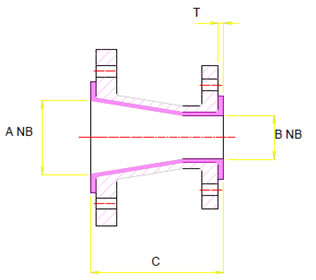

Lined Concentric Reducer
Concentric Reducer 25 - 300
ANSI # 150
S.G. Iron - EN-GJS-400-18-LT
Cast Steel - ASTM A 216 WCB
Steel Fabrication
PTFE: ASTM D 4895 Type III
PFA - ASTM D 3307 type II
PVDF - ASTM D 3222
Polypropylene - ASTM D 4101
A mm |
B mm |
C mm |
T mm |
~kg |
25 |
15 |
114 |
3 |
2 |
25 |
20 |
114 |
3 |
2 |
40 |
15 |
114 |
5.6 |
3 |
40 |
20 |
114 |
5.6 |
3 |
40 |
25 |
114 |
5.6 |
3 |
50 |
25 |
127 |
5.6 |
4 |
50 |
40 |
127 |
5.6 |
5 |
65 |
40 |
140 |
3 |
5.5 |
80 |
25 |
152 |
5.6 |
6 |
80 |
40 |
152 |
5.6 |
7 |
80 |
50 |
152 |
5.6 |
8 |
80 |
65 |
152 |
5.6 |
9 |
100 |
40 |
178 |
6.4 |
10 |
100 |
50 |
178 |
6.4 |
11 |
100 |
80 |
178 |
6.4 |
13 |
150 |
40 |
229 |
7.1 |
19 |
150 |
50 |
229 |
7.1 |
19 |
150 |
80 |
229 |
7.1 |
20 |
150 |
100 |
229 |
7.1 |
24 |
200 |
100 |
279 |
7.9 |
24 |
200 |
150 |
279 |
7.9 |
35 |
250 |
100 |
305 |
7.9 |
48 |
250 |
150 |
305 |
7.9 |
48 |
250 |
200 |
305 |
7.9 |
57 |
300 |
150 |
356 |
9.5 |
75 |
300 |
200 |
356 |
9.5 |
77 |
300 |
250 |
356 |
9.5 |
86 |
Tapped holes on cast steel WCB items on flange B only
Concentric Reducer 350 - 600
ANSI # 150
Steel Fabrication - ASTM A 234
ASTM A 105
PTFE: ASTM D 4894 Type IV
A mm |
B mm |
C mm |
T mm |
~kg |
350 |
300 |
406 |
10 |
80 |
400 |
350 |
457 |
10 |
115 |
450 |
400 |
483 |
10 |
157 |
500 |
450 |
508 |
10 |
225 |
600 |
500 |
610 |
10 |
300 |
Reductions may be achieved by the use of combined reducers and reducing flanges. The overall length would be that of the reducer plus the reducing flange thickness.
