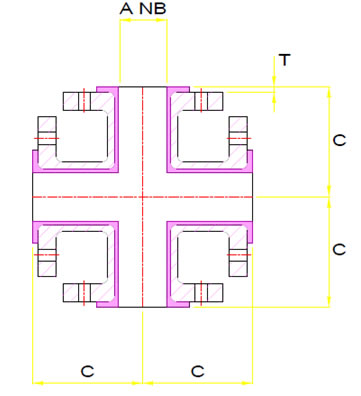

Lined Equal Cross
Equal Cross 15 – 250
ANSI #150
S.G. Iron - EN-GJS-400-18-LT
Cast Steel - ASTM A 216 WCB
Steel Fabrication
PFA - ASTM D 3307 type II
PVDF - ASTM D 3222
Polypropylene - ASTM D 4101
A mm |
C mm |
T mm |
~kg |
15 |
65 |
2.9 |
3.1 |
20 |
75 |
2.9 |
3.9 |
25 |
89 |
5.6 |
5.4 |
40 |
102 |
5.6 |
8.6 |
50 |
114 |
5.6 |
13 |
80 |
140 |
5.6 |
23 |
100 |
165 |
6.4 |
39 |
150 |
203 |
7.1 |
66 |
200 |
229 |
7.9 |
99 |
250 |
279 |
7.9 |
161 |
Equal Cross 300 - 600
ANSI # 150
Steel Fabrication
Body plate: BS 1501 - 151 - 430A
Tube: API 5L Gr. B
Flange: ASTM A 105N
PTFE: ASTM D 4894 Type
A mm |
C mm |
T mm |
~kg |
300 |
305 |
8.9 |
T.B.A. |
350 |
356 |
10 |
T.B.A. |
400 |
381 |
10 |
T.B.A. |
450 |
419 |
10 |
T.B.A. |
500 |
457 |
10 |
T.B.A. |
600 |
559 |
10 |
T.B.A. |
