Reducing Adaptor NPT x NPT
A Reducing Adaptor NPT x NPT is a Threaded Pipe fitting which consists of a short piece of Hex pipe, provided with a NPT female pipe thread at one end and a NPT male pipe thread at another with different sizes, for connecting two other fittings.

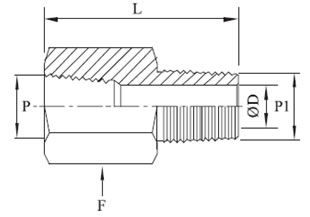

Design : IIPF/RA
PART No. |
P |
P1 |
ØD |
L |
F |
NPTF |
NPTM |
Inch |
Inch |
Hex |
|
IIPF/RA/2-1I |
1/8 |
1/16 |
0.12 |
1.03 |
9/16 |
IIPF/RA/4-1I |
1/4 |
1/16 |
0.12 |
1.20 |
3/4 |
IIPF/RA/4-2I |
1/4 |
1/8 |
0.19 |
1.25 |
3/4 |
IIPF/RA/6-1I |
3/8 |
1/16 |
0.19 |
1.25 |
7/8 |
IIPF/RA/6-2I |
3/8 |
1/8 |
0.19 |
1.33 |
7/8 |
IIPF/RA/6-4I |
3/8 |
1/4 |
0.28 |
1.50 |
7/8 |
IIPF/RA/8-2I |
1/2 |
1/8 |
0.19 |
1.58 |
1-1/16 |
IIPF/RA/8-4I |
1/2 |
1/4 |
0.28 |
1.75 |
1-1/16 |
IIPF/RA/8-6I |
1/2 |
3/8 |
0.38 |
1.75 |
1-1/16 |
IIPF/RA/12-2I |
3/4 |
1/8 |
0.36 |
1.56 |
1-3/8 |
IIPF/RA/12-4I |
3/4 |
1/4 |
0.28 |
1.82 |
1-3/8 |
IIPF/RA/12-6I |
3/4 |
3/8 |
0.38 |
1.82 |
1-3/8 |
IIPF/RA/12-8I |
3/4 |
1/2 |
0.47 |
2.02 |
1-3/8 |
IIPF/RA/16-2I |
1 |
1/8 |
0.36 |
1.81 |
1-5/8 |
IIPF/RA/16-4I |
1 |
1/4 |
0.28 |
1.95 |
1-5/8 |
IIPF/RA/16-6I |
1 |
3/8 |
0.38 |
1.95 |
1-5/8 |
IIPF/RA/16-8I |
1 |
1/2 |
0.47 |
2.16 |
1-5/8 |
IIPF/RA/16-12I |
1 |
3/4 |
0.62 |
2.16 |
1-5/8 |
