Tube to Adapter

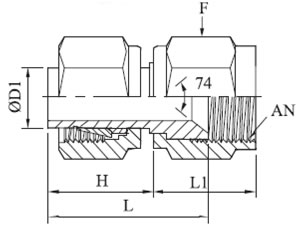

Tube to AdapterTube to Adapter Diagram
Design: IICF/AN-A

IMPERIAL

PART NO.

ØD1
Imperial

AN
Tube Flare Size

F
Hex

L

L1

H

IICF/AN-A/2I-2T

1/8

1/8

3.17

3/8

9.5

18.54

13.71

13.46

IICF/AN-A/2I-4T

1/8

1/4

6.35

9/16

14.3

19.05

15.74

13.46

IICF/AN-A/4I-4T

1/4

1/4

6.35

9.16

14.3

21.33

15.74

15.75

IICF/AN-A/6I-6T

3/8

3/8

9.52

11/16

17.5

24.89

21.59

17.53

IICF/AN-A/8I-8T

1/2

1/2

12.70

7/8

22.2

31.75

21.59

23.1
