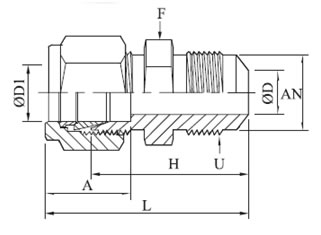

Tube to Union

IMPERIAL

PART NO.

ØD1
Imperial

AN
Tube Flare Size

ØD

F
Hex

H

L

A

U
Str. Thread

IICF/AN-U/2I-2T

1/8

1/8

3.17

1.52

7/16

11.1

25.65

32.26

12.70

5/16-24

IICF/AN-U/2I-4T

1/8

1/4

6.35

2.28

1/2

12.7

28.44

35.05

12.70

7/16-20

IICF/AN-U/4I-4T

1/4

1/4

6.35

4.31

1/2

12.7

30.22

37.59

15.24

7/16-20

IICF/AN-U/6I-4T

3/8

1/4

6.35

4.31

5/8

15.9

32.25

39.62

16.76

7/16-20

IICF/AN-U/6I-6T

3/8

3/8

9.52

7.11

5/8

15.9

32.25

39.62

16.76

9/16-18

IICF/AN-U/8I-8T

1/2

1/2

12.70

9.90

13/16

20.6

35.8

45.96

22.86

3/4-16

IICF/AN-U/12I-12T

3/4

3/4

19.05

15.49

1-1/8

28.6

43.18

53.34

24.38

1-1/16-12

IICF/AN-U/16I-16T

1

1

25.40

21.34

1-3/8

34.9

49.28

61.47

31.24

1-5/16-12
