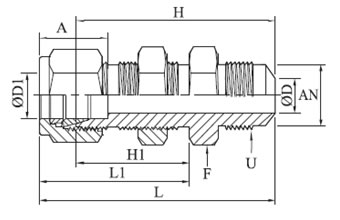

Tube to Bulkhead Union

IMPERIAL

PART NO.

ØD1
Tube

AN
Tube Flare Size

ØD

F
Hex

H

    H1

L

L1

U
Str.Thread

Panel
Drill Size

Max
Panel Size

A

IICF/AN-BU/4I-4T

1/4

1/4

6.35

4.30

15.9

46.48

26.16

53.84

33.52

7/16-20

11.50

10.16

15.2

IICF/AN-BU/6I-6T

3/8

3/8

9.52

7.11

19.1

49.78

29.46

57.15

36.83

9/16-18

14.68

11.17

16.8

IICF/AN-BU/8I-8T

1/2

1/2

12.70

9.90

23.8

55.63

31.75

65.79

41.91

3/4-16

19.45

12.70

22.9

IICF/AN-BU/12I-12T

3/4

3/4

19.05

15.49

30.2

68.83

37.34

78.99

47.5

1-1/16-12

25.80

16.76

24.4

IICF/AN-BU/16I-16T

1

1

25.40

21.33

41.3

80.26

45.21

92.46

57.4

1-5/16-12

33.73

19.05

31.2
