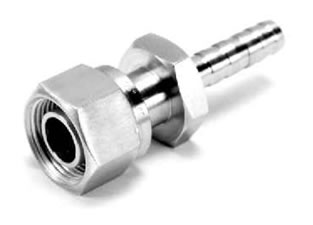

Hose to Tube Compression

Hose to Tube CompressionHose to Tube Compression Diagram
Design: IICF/HTC/IN

IMPERIAL

PART NO.

ØD1
Imperial

ØD2
Hose Size

L

H

F
Hex

IICF/HTC/4I

1/4

-4

1.77

0.72

1/16

IICF/HTC/6I

3/8

-6

1.98

0.78

9/16

IICF/HTC/8I

1/2

-8

2.42

1.03

11/16
